Description

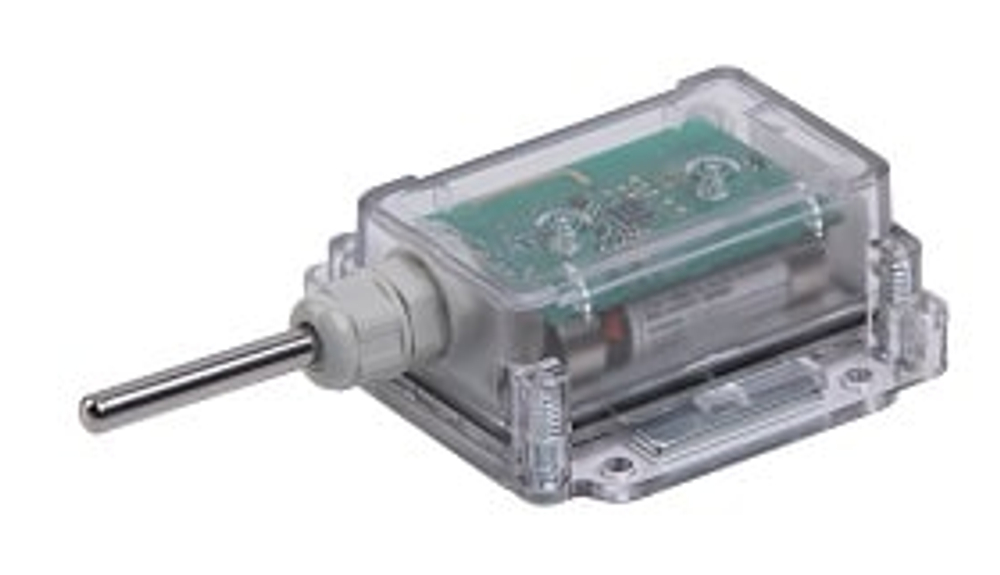

Dust and splash-resistant IP65 housing allows you to work even in harsh environments.
< strong>Benefits of the ADM35 Sensor:
- Simultaneous control of temperature, light and magnetic field (Hall sensor)
- Works on the new Bluetooth Long Range data exchange technology, but also supports operation within BLE
- 9 operating modes allow you to adjust the desired signal strength and provide a transmission distance of up to 1000 m
- Control parameters with smartphone
- Black box for 19700 entries
- Can be paired with ;BLE base ADM30 and standalone
- Powerful 2700 mAh replaceable battery
ADM35 sensor specifications:
| Operating temperature: | -40oC…+85oC < /td> |
| Temperature measurement accuracy: | ±0.3< sup>oC |
| Measured illumination range: | 0.01 lux...83000 lux |
| Hall sensor type: | discrete, omnipolar |
| Air interface frequency range: | 2400...2483.5 MHz |
| Transmitter power: | up to +8 dBm< /p> |
| Receiver sensitivity: | -96 dBm |
| Dust and moisture protection, class: | IP65 |
| Communication technology: | Bluetooth Low Energy (BLE), Bluetooth Low Energy Long Range (BLE Long Range) |
| Communication range in BLE mode: | up to 100 m line of sight |
| up to 1000 meters line of sight | |
| Number of records to keep: | 19700 |
| Battery: | ER14505 / 3.6V / 2700mAh |
| Battery life: | 3 years old |
| Dimensions: < /td> | 129 (73 without gauge) x 68 x 32 mm |
| < p>Weight: | no more than 105 g |
