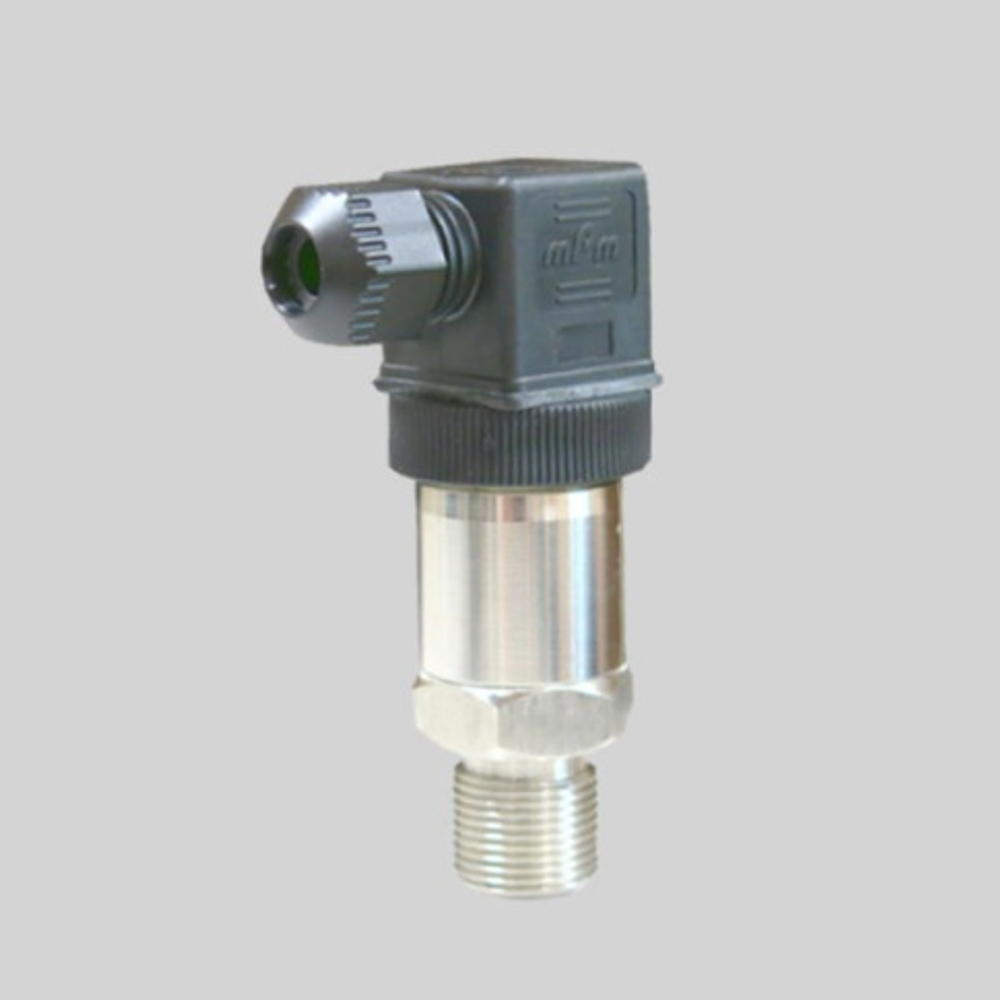

Pressure sensor DDM-03T-1600-DI

Name: Pressure sensor DDM-03T-1600-DI
SKU: 007754

Number

Buy in one click

Add to comparison

Pressure sensorDDM-03T-1600-DI is designed to convert excess pressure of water, air, gas and media neutral to stainless steel into a unified constant signal current 4-20mA.

Description

Reviews

Description

Specifications for the DDM-03T-1600-DI sensor:< /h2>

Working pressure: from 0 to 1600kPa (1atm=1bar=1kgf/cm2=100kPa)
Precision class: 0.5
Working environment temperature: -40 +125 degrees C
Power supply: 24V+-6% DC
Power consumption: no more than 0.6VA
Hull protection rating: IP54
Ambient temperature: -40 +80 degrees C
Append type: M20x1.5 thread (G1/2 on request)
Body Material: stainless steel
