eCargosens axle load sensor

Name: eCargosens axle load sensor
SKU: 007964

Number

Buy in one click

Add to comparison

Used to track and fix the load on the vehicle axle.

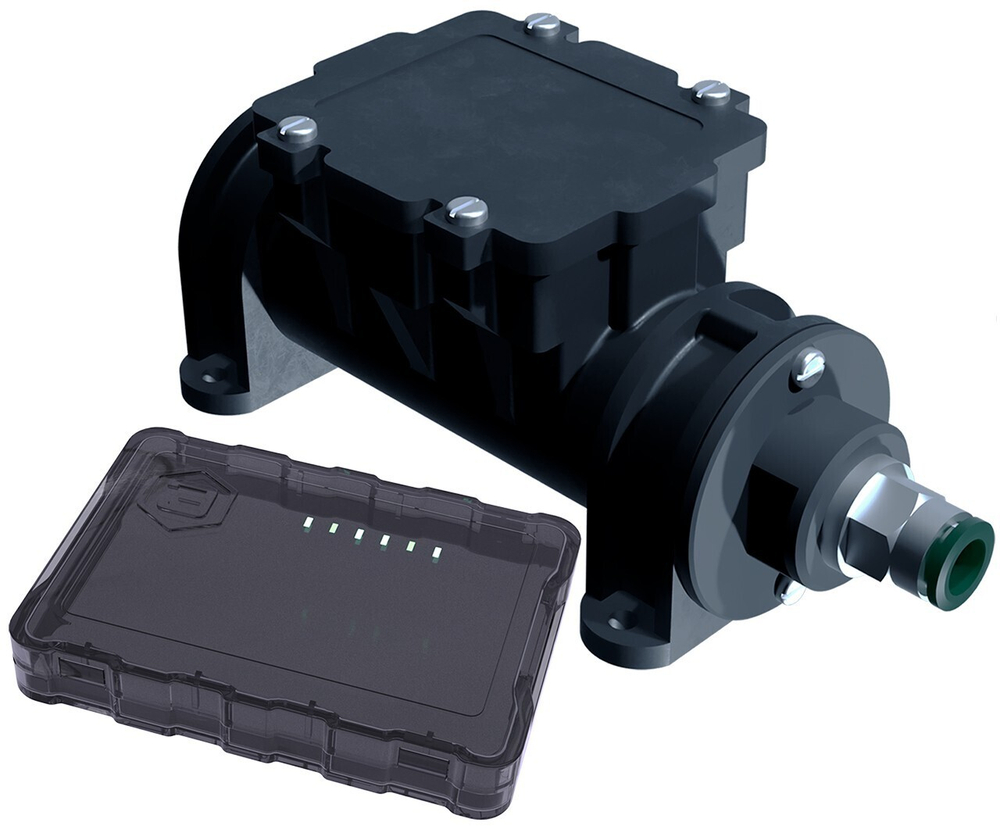

eCargosens &ndash ; this is a system of several measuring units of pressure sensors and a cabin unit.

One wireless pressure sensor is installed on each axle of the tractor and its semi-trailer (namely air suspension). The cab unit is installed in the cab or, if necessary, on the frame of the tractor and serves to collect data from pressure sensors, transfer them to the monitoring system via the navigation terminal and to the application for the driver.

Description

Characteristics

Reviews

Description

Features and benefits of eCargosens:

the absence of wires greatly simplifies the process of integration and further operation of the system;
Innovative data transfer technology - Bluetooth 5.0 Long Range;
System control - with a convenient mobile application: axle load display on any mobile device)*

*for iOS - version 12.1 and later,
for Android OS version 5.0 and later.

Specifications:

eCargosens Air axle load sensor

< td style="text-align: center;">3,3 … 3.6

Operating absolute pressure measurement range, MPa< /td>	0,1 …2
Total reduced measurement error in the operating range, no more than, %	±3
Battery capacity at temp operating time 20 °C, mAh	9000
The unit's operation time from one set of batteries at 20 °С, at least, years	3
Battery voltage, V
Average consumed current, no more than, μA	300
Bluetooth Standard	Bluetooth Low Energy 5 LR(coded PHY), peripherial (advertising, connection)
Receiver sensitivity / transmitter power, dBm	-96 / 8
Operating range frequencies, GHz	2,402 … 2,480
Maximum Bluetooth range (Long Range) in open space without obstacles, m	200
Mobile exchange protocol	Escort eCargosens
The degree of protection provided by the shell	IP68
Temperature range, °C	From minus 45 to plus 50
Dimensions, no more than, mm	138x60x59
Weight, no more than, kg	0.25

eCargosens DS cab unit

Power supply voltage, V	From 9 to 36
Current consumption, max. mA	100
1) Tracker interface 2) Data exchange protocol 3) Data rate, bps	1) RS-485 2) LLS 3) 19200
1) Interface with eCargosens Air wireless axle load sensor and mobile device 2) Communication protocol	1) Bluetooth LE (BLE) 2) Escort eCargosens
Bluetooth Standard	Bluetooth Low Energy 5 LR coded PHY (connection - central) Bluetooth Low Energy 4 (connection, advertising)
Receiver sensitivity / transmitter power, dBm	-96 / 8
Operating frequency range, GHz	From 2,402 to 2,480
Number of wireless eCargosens Air axle load sensors polled	Up to 10
Degree of sheath protection according to GOST 14254	IP54
Protection against electric shock according to GOST 12.2.007.0	class III
Operating conditions: - ambient temperature, ° С - limiting ambient temperature, °С - atmospheric pressure, kPa	From minus 40 to plus 50 From minus 40 to plus 85 From 84 to 106.7
Dimensions, no more than mm	150х100х55
Mass, no more than kg	0,2
