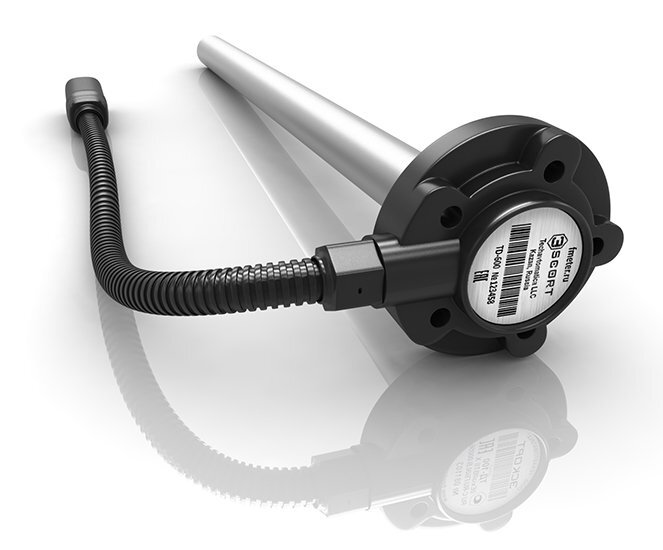

Fuel level sensor ESCORT TD-150, L1000

FLS "Escort TD-150" combines the most common types of output signals:

• Digital RS-485, frequency and analog.
• Suitable for use in explosive environments, OExiallBT6 X explosion-proof certified for the sensor.
• Quality approved by European Union CE and E-Mark, Customs Union Certificate, GOST-R Certificate of Conformity.
• The measuring part of the sensor can be easily adapted to any tank depth from 15 cm to 6 m.
• The fuel control sensor is easy to set up and interacts perfectly with monitoring systems of any manufacturer.

Additional benefits:

• Galvanic isolation throughout the sensor body;
• Monitoring of connector opening and/or cable breakage;
• Extended analog signal range from 0.2 to 9 V;
• Operating temperature range ry from -60/+85 °C;
• Advanced thermal compensation algorithm;
• High degree of protection against moisture and dust ingress IP67;
• Sensor body made of polyamide, which has a high degree of resistance to external mechanical influences.

Wires for connection are reliably isolated from external influences by means of a plastic corrugation with increased strength and plasticity.< /p>

Escort TD-150 sensor was released in 2017 in response to consumer requests and is a continuation of the Escort TD-100 fuel sensor. with the addition of an analog operating mode with an extended signal range.

In a short time, the FLS «Escort TD-150» won recognition from consumers and is now one of the most popular models of Escort sensors.

Escort-TD fuel level sensors that's thousands of installs and tons of fuel saved!

Specifications:
