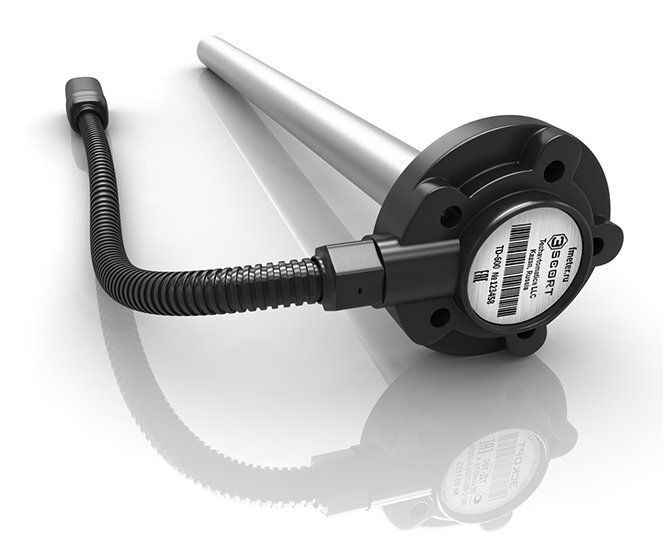

Fuel level sensor ESCORT TD-600, L2000

Another distinguishing feature of the TD-600 is its ability to measure and transmit tilt relative to the configured "zero" angle. position.

TD-600 has galvanic isolation throughout the sensor body, and also has an increased protected against dust and moisture IP69S.

All materials and components are protected by a shockproof housing, tested for resistance to extreme temperature changes from -60 to +85 ° C and meet the high quality and safety standards set by the GOST-R certification system.

Specifications:

< table style="width: 933px;"> Measuring environment Gasoline, Diesel Output Type RS-485; RS-232; frequency, analog, pulse signals Digital output resolution 0.10% Analog output resolution 0.25% Frequency Range 300 ... 4395Hz Analog Signal Range 0.2 ... 9V Pulse Range 2…1025 pts The accuracy of measurement in the work area is not worse 1% Nonlinear statistic, not worse 1% Rated supply voltage 7 ... 80 V (starting from serial number 10776) Consumption current, max 30 mA Degree of protection IP69S Sensor length 1500mm Dielectric strength of galvanic isolation, min 2000 B
