Description
- Built-in sensitive GLONASS/GPS and GSM antennas
- Built-in 800 mAh battery< /li>
- 2G modem
- 2 SIM cards
- Power protection up to 500V and input lines protection up to 350V
- 3 universal input lines
- 2 control output lines
- Interfaces: RS-485, 2 CAN and 1-Wire
- MODBUS support
- Bluetooth 4.0

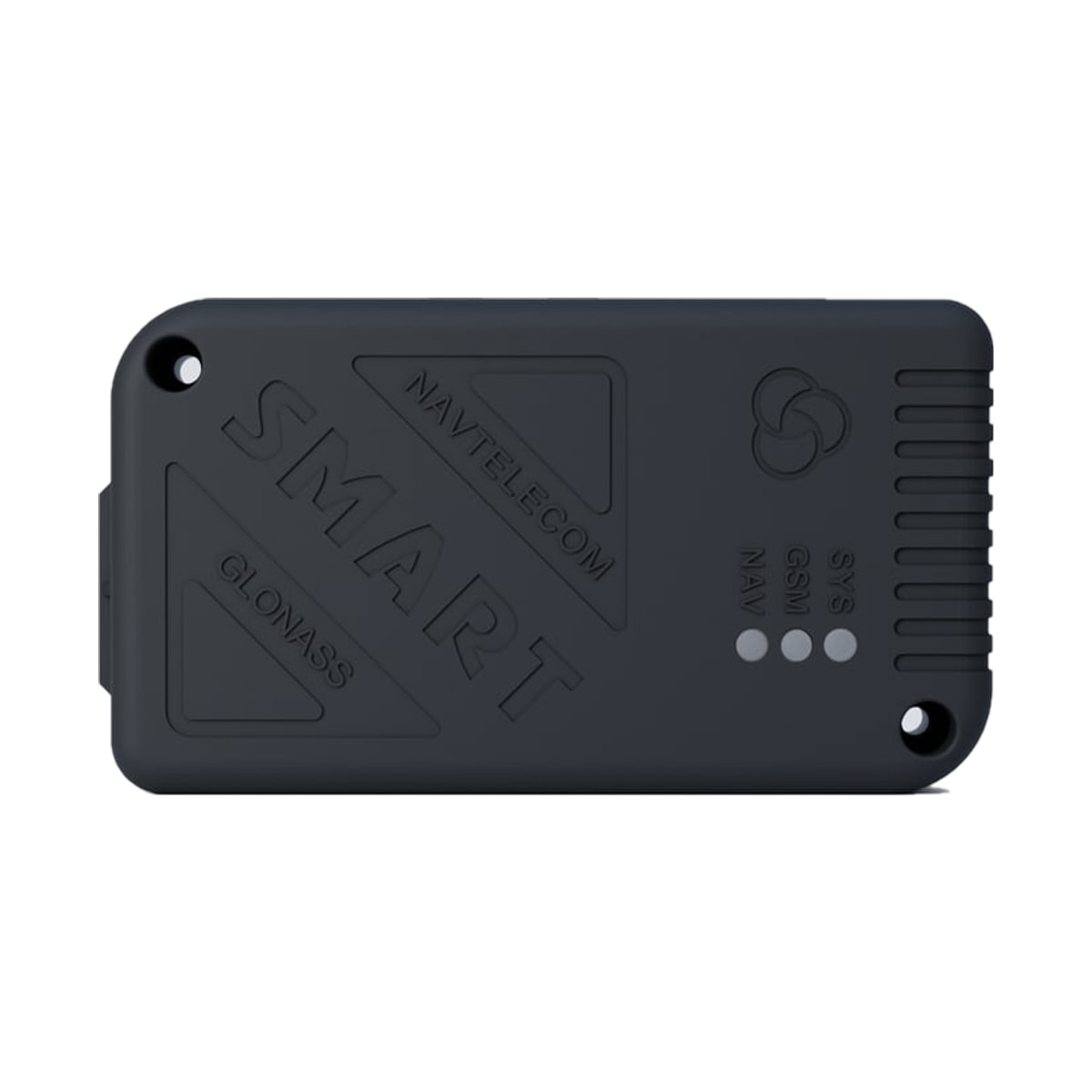

S-2437 SMART Device Features
| Power Options | Operating supply voltage, V1 | 9.5…47 |
| yes | |
| Protection against prolonged overvoltage up to 500V | yes |
| Average current consumption at 12 V in operating mode2, mA | 80 |
| Consumed current at 12 V with GLONASS and GSM modules off, no more, mA | 30 |
| Maximum current consumption at 12 V in operating mode while charging the built-in battery no more than, mA | 200 |
| Reverse polarity protection | yes |
| Built-in Battery3 | Li-Po 3.7 V, at least 800 mAh | The presence of built-in battery protection against overcharging, full discharge, short circuit4 | yes |
| Device operation time from a fully charged built-in battery (without external power supply), at least h5 | 6 |
| A programmable power saving mode with the ability to disable GLONASS/GPS and GSM modules | yes |
| Ability to operate the device on a timer and calendar | yes |
| Time to fully charge the built-in battery, no more than, h | 5 |
| Charging the built-in battery via USB | yes |
| Input lines | |
| Input line surge protection, V | to 350 |
| Total number of universal (analog, discrete, pulse-frequency) input lines | 3 |
| Total analog input lines | - |
| Total number of discrete input lines | - |
| Number of pulse-frequency input lines used to connect frequency FLS or count rectangular pulses | up to 3 (as part of universal) | Measured frequency range (for meander signal) for working with frequency FLS, Hz | 1 - 3000 |
| up to 3 (as part of universal) | |
| Voltage measured by analog input lines, V | 0…31 |
| Built-in pull-up resistor for discrete inputs | yes |
| Output lines | |
| Number of output control lines | 2 |
| Maximum switching current by output control lines, mA | 500 |
| Maximum switching voltage by output control lines, V | 48 |
| Customizable behavior of output lines (permanent, single, periodic) | yes |
| Device memory | |
| Non-volatile memory entries (by ring buffer type) | to 13500 |
| MicroSD card support (up to 32GB) | none |
| Number of entries in optional non-volatile memory (microSD) | - |
| Internal storage data recording period, s | 1 — 3600 and/or event |
| Accelerometer | Accelerometer with built-in customizable soft, hard, translation, and tilt sensors | yes |
| Maximum impact g-force measured by the instrument, g | 8 |
| Calibrating the accelerometer using information from the GLONASS/GPS module during normal vehicle movement | yes |
| Settings and controls | |
| USB interface for configuration, control and data transfer | yes |
| Configuring the device using the NTC Configurator | yes |
| Ability to update firmware and change settings via GPRS channel | yes |
| Available automatic firmware update | yes |
| Ability to change settings via SMS | yes |
| The presence of tone control and the ability to control via GPRS, SMS and DTMF | yes |
| Data Transfer | |
| Number of SIMs used | 2 |
| Ability to transmit data via GSM via SMS, GPRS channels | yes |
| Possibility to optionally select the passed parameters to save traffic | yes |
| The ability to send roaming information only about the current state on the set timers in motion and at a stop, with subsequent unloading of all accumulated data on the home network | < td style="height: 68px; text-align: center;" width="123"> |
| Ability to customize the list of priority operators in roaming | yes |
| Automatic detection of operator settings based on registration data of the SIM card in the GSM network | yes |
| EGTS protocol support | yes |
| Support for custom FLEX and FLEX 2.0 protocols | yes |
| FLEX 3.0 custom protocol support | yes |
| Number of servers (IP addresses) to which telemetry information can be simultaneously transmitted | 3 |
| Ability to send telemetry data to the server repeatedly by SMS or GPRS request for a period | yes |
| Output user and debug logs from GSM modem, GPS receiver and interfaces) | yes |
| TCP and UDP capable | yes |
| Ability to work with SIM-chip (including MVNO) | optional |
| Number of subscribers for SMS notification | 5 |
| Functions | EcoDriving Function | yes |
| Function to capture an accident event according to GOST or ASI accident severity index | yes |
| Generating and sending the RTA profile file to the server | yes |
| Vehicle Recovery Tracking Function | yes |
| Immobilizer function using Proximity card driver identification system and 1-Wire interface | yes |
| Guard Mode | yes |
| GSM signal jamming detector | yes |
| Ability to send SMS on speeding event | yes |
| Determination of the fact of engine operation and calculation of engine hours by the nature of the voltage in the vehicle's on-board network | yes |
| Selection of sensors used to calculate engine hours | yes |
| Tamper Sensor | none |
| Ability to provide LBS information from the three nearest cell towers | yes |
| Ability to encrypt data according to the AES128 standard when transferring data to the server | yes |
| Algorithm for measuring real mileage taking into account terrain | yes |
| Selection of sensors over which coordinates are averaged | yes |
| Ability to adjust the degree of data averaging over all inputs configured for FLS | yes |
| RS-232 digital interface | none |
| RS-485 digital interface | yes |
| Maximum number of connected LLS digital fuel level sensors via RS-485 interface | 16 |
| Possibility of simultaneous operation on RS-485 interface of FLS (LLS) and tachographs (Shtrikh, Mercury, Atol) | yes |
| Ability to work with "Escort" RFID readers ("Radius"), "Mielta" and LLS compatible | yes |
| Ability to output NMEA strings from navigation module via RS-485 interface | yes |
| CAN interface | yes |
| Number of CAN interfaces | 2 |
| Support for CAN-LOG and CANFMS CAN adapters | yes6 |
| Transparent Port Mode7 | yes |
| Uploading ddd-files from tachographs "Shtrikh", "Mercury" | yes |
| Uploading ddd files from "VDOContinental", "Atol" tachographs | yes |
| DV-01 Driver Display Connection | yes |
| Including a route indicator board | none |
| Auto Informer | none |
| Ability to use information from pressure sensors in tires "Pressure Pro", "TPMS 6-13" (from Parkmaster), B-Tag (from "Bridgestone") and TM508T22U | yes |
| Camera connection | none |
| Bluetooth | yes |
| Able to connect a Bluetooth wireless headset for two-way communication with the driver | yes |
| Ability to connect a microphone and speaker for hands-free calling with the driver or microphone listening | none |
| Speaker impedance and power | - |
| Ability to connect to a buzzer output line to alert an incoming call | yes |
| 1-Wire Interface | yes |
| Interface for connecting digital temperature sensors | 1-Wire |
| Maximum possible number of connected 1-Wire digital temperature sensors | 8 |
| Possibility to generate events on decrease/exceeding of temperature | yes |
| Read TouchMemory key codes over 1-Wire bus and identify drivers | yes |
| Maximum number of TouchMemory key codes stored in device memory without SD card | 510 |
| Performance | |
| Storage temperature with built-in battery8, oC | 0 … +40 |
| Storage temperature without built-in battery, oC | -40 … +85 |
| Operating temperature with built-in battery, oC | -20 … +60 |
| Operating temperature without built-in battery, oC | -40 … +85 |
| Temperature at which the built-in battery can be charged, оC | 0 … +50 |
| Maximum allowable humidity at 35оС, % | 95 |
| Maximum Impact Overload Allowed | 24 |
| Device Design Features | |
| Built-in GLONASS/GPS and GSM antennas | yes |
| External GLONASS/GPS and GSM antennas | none |
| Computer connector | miniUSB
