Description
Features and benefits of eCargosens:
- the absence of wires greatly simplifies the process of integration and further operation of the system;
- Innovative data transfer technology - Bluetooth 5.0 Long Range;
- System control - with a convenient mobile application: axle load display on any mobile device)*
*for iOS - version 12.1 and later,
for Android OS version 5.0 and later.
Specifications:

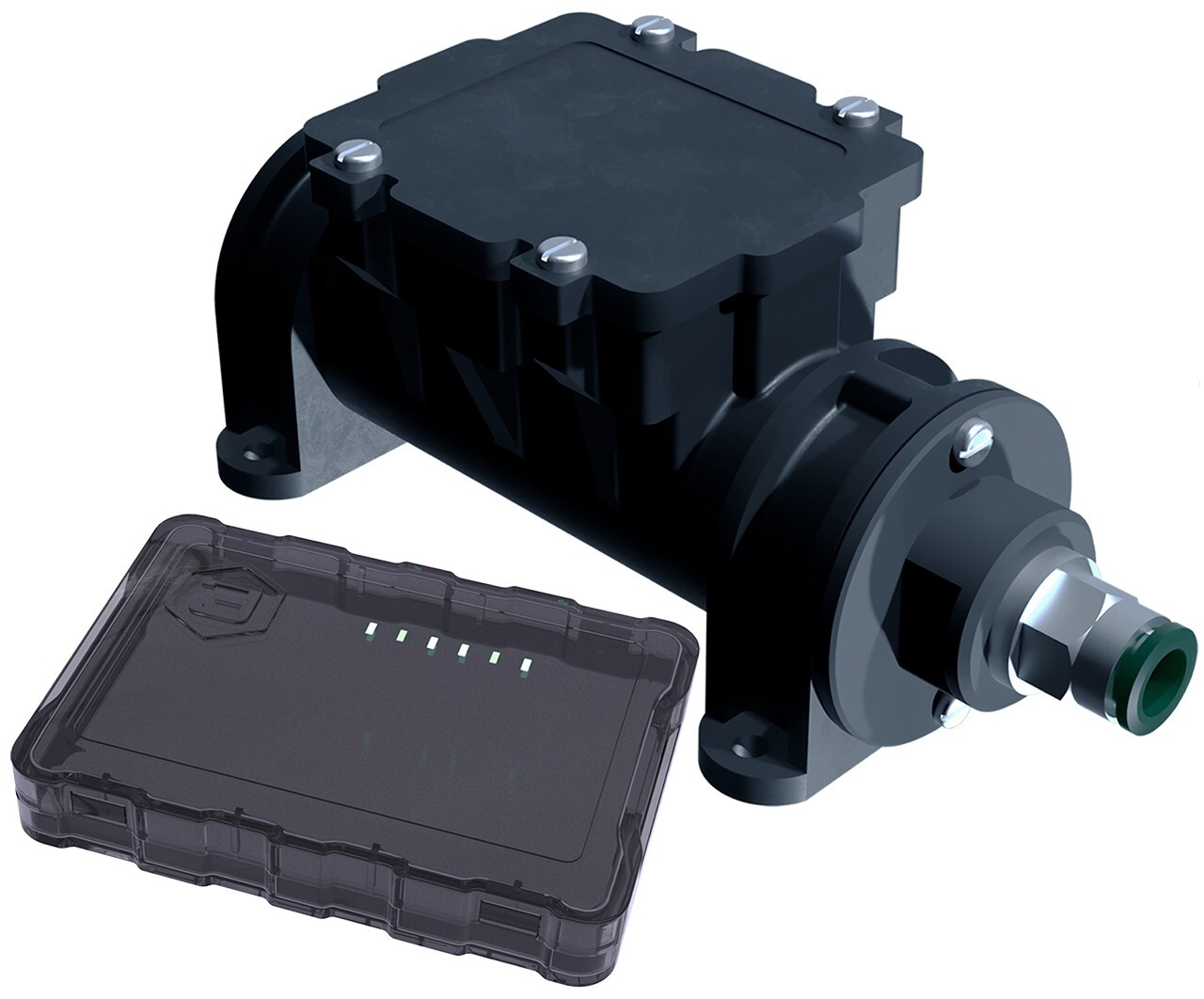

eCargosens Air axle load sensor
| Operating absolute pressure measurement range, MPa< /td> | 0,1 …2 |
| Total reduced measurement error in the operating range, no more than, % | ±3 |
| Battery capacity at temp operating time 20 °C, mAh | 9000 |
| The unit's operation time from one set of batteries at 20 °С, at least, years | 3 |
| Battery voltage, V | < td style="text-align: center;">3,3 … 3.6|
| Average consumed current, no more than, μA | 300 |
| Bluetooth Standard | Bluetooth Low Energy 5 LR(coded PHY), peripherial (advertising, connection) |
| Receiver sensitivity / transmitter power, dBm | -96 / 8 |
| Operating range frequencies, GHz | 2,402 … 2,480 |
| Maximum Bluetooth range (Long Range) in open space without obstacles, m | 200 |
| Mobile exchange protocol | Escort eCargosens |
| The degree of protection provided by the shell | IP68 |
| Temperature range, °C | From minus 45 to plus 50 |
| Dimensions, no more than, mm | 138x60x59 |
| Weight, no more than, kg | 0.25 |
eCargosens DS cab unit
| Power supply voltage, V | From 9 to 36 |
| Current consumption, max. mA | 100 |
| 1) Tracker interface 2) Data exchange protocol 3) Data rate, bps | 1) RS-485 2) LLS 3) 19200 |
| 1) Interface with eCargosens Air wireless axle load sensor and mobile device 2) Communication protocol | 1) Bluetooth LE (BLE) 2) Escort eCargosens |
| Bluetooth Standard | Bluetooth Low Energy 5 LR coded PHY (connection - central) Bluetooth Low Energy 4 (connection, advertising) |
| Receiver sensitivity / transmitter power, dBm | -96 / 8 |
| Operating frequency range, GHz | From 2,402 to 2,480 |
| Number of wireless eCargosens Air axle load sensors polled | Up to 10 |
| Degree of sheath protection according to GOST 14254 | IP54 |
| Protection against electric shock according to GOST 12.2.007.0 | class III |
| Operating conditions: - ambient temperature, ° С - limiting ambient temperature, °С - atmospheric pressure, kPa | From minus 40 to plus 50 From minus 40 to plus 85 From 84 to 106.7 |
| Dimensions, no more than mm | 150х100х55 |
| Mass, no more than kg | 0,2 |
