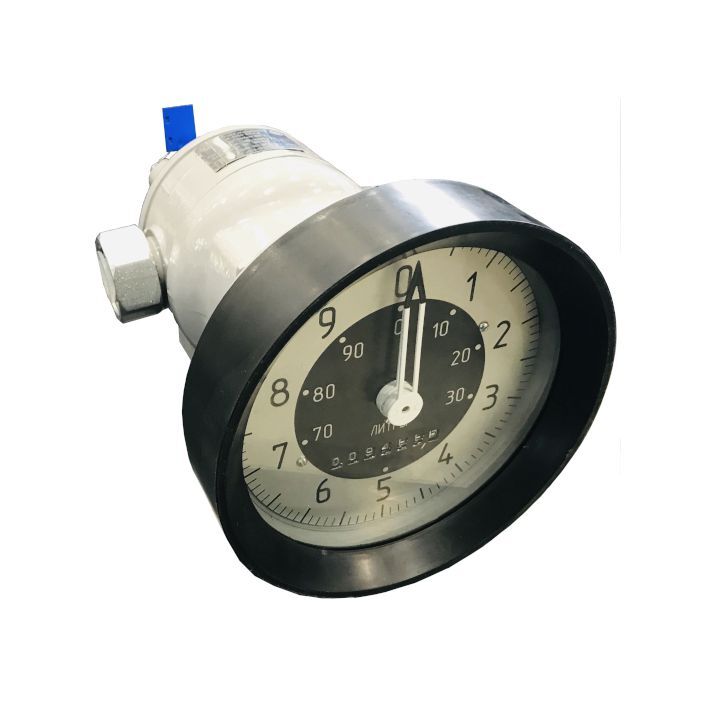

Liquid meters with oval PPO gears-25-1,6- SUS are designed to measure the volume amount of non-aggressive petroleum products.
A mechanical counting device.
The diameter of the conditional passage is 25mm.
The flow part of the PPO counters-25-1,6- The SU is made of materials:
— housing — aluminum AK9M2 GOST 1583-93,
— oval GEAR — ALUMINUM AK9M2 GOST 1583-93,
— seals — RINGS GOST 18829-73 3826c-NTA TU 38.0051166-98,
— bronzographic bearings
Liquid meters with oval PPO gears-25-1,6- SU has the following competitive advantages:
— improved metrological characteristics (accuracy class up to 0.15);
— the ability to use the meter on viscous media (up to 300 cSt);
— competitive price and time-tested quality
The verification interval is at least once every 2 years.
Technical characteristics of the CJ-PPO counter-25-1,6- SU
Conditional passage, DN, 25mm
Working pressure 1.6 MPa
Viscosity range of the measured liquid 0,55-1,1; 1,1-6,0; 6,0-60 cSt
Operating temperature, -40 to +50°C
Accuracy class 0.25
Weight 8 kg
