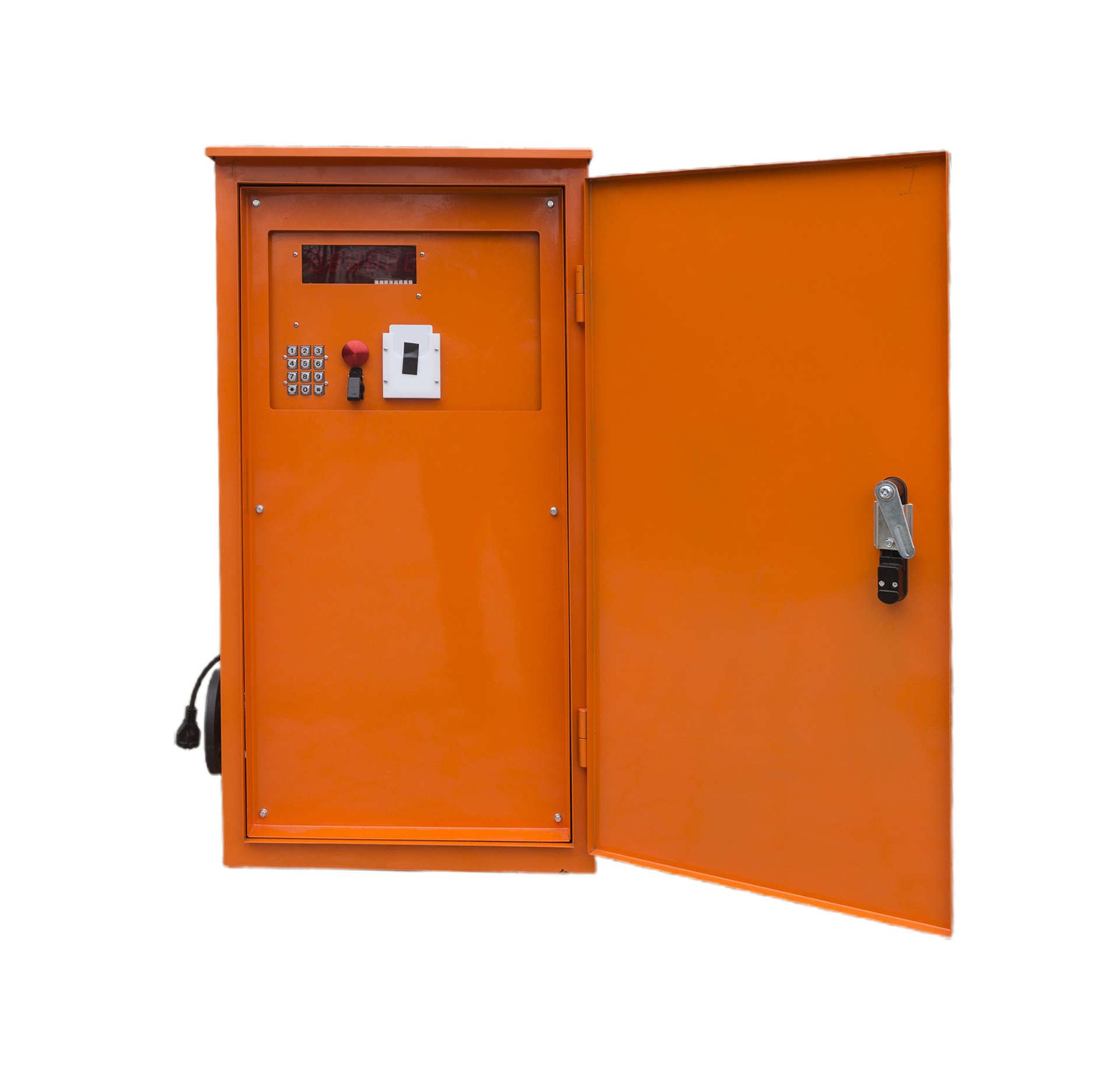

The convenient EFL-BOX filling station is based on a standard mechanical filling kit for diesel fuel and gasoline with a volume meter like standard Topaz, Nara, Livenka, etc. filling dispensers, but unlike them, it uses a single-phase pump, which is smaller, lighter and easier to connect. Therefore, such a complete set of fuel equipment is usually used at departmental gas stations. Also, unlike standard fuel dispensers, an Exotron fuel dispensing control and monitoring unit is used with data transfer to accounting and monitoring systems. This block was developed in 2018 and includes, in addition to the standard display and buttons, a keyboard for entering the fuel dose, a plastic card reader for identifying the recipient using fuel cards, and a satellite monitoring device for accounting for fuel dispensing.
Basic equipment for 220V. Fuel - diesel.
Overall dimensions: cm 38×46×90

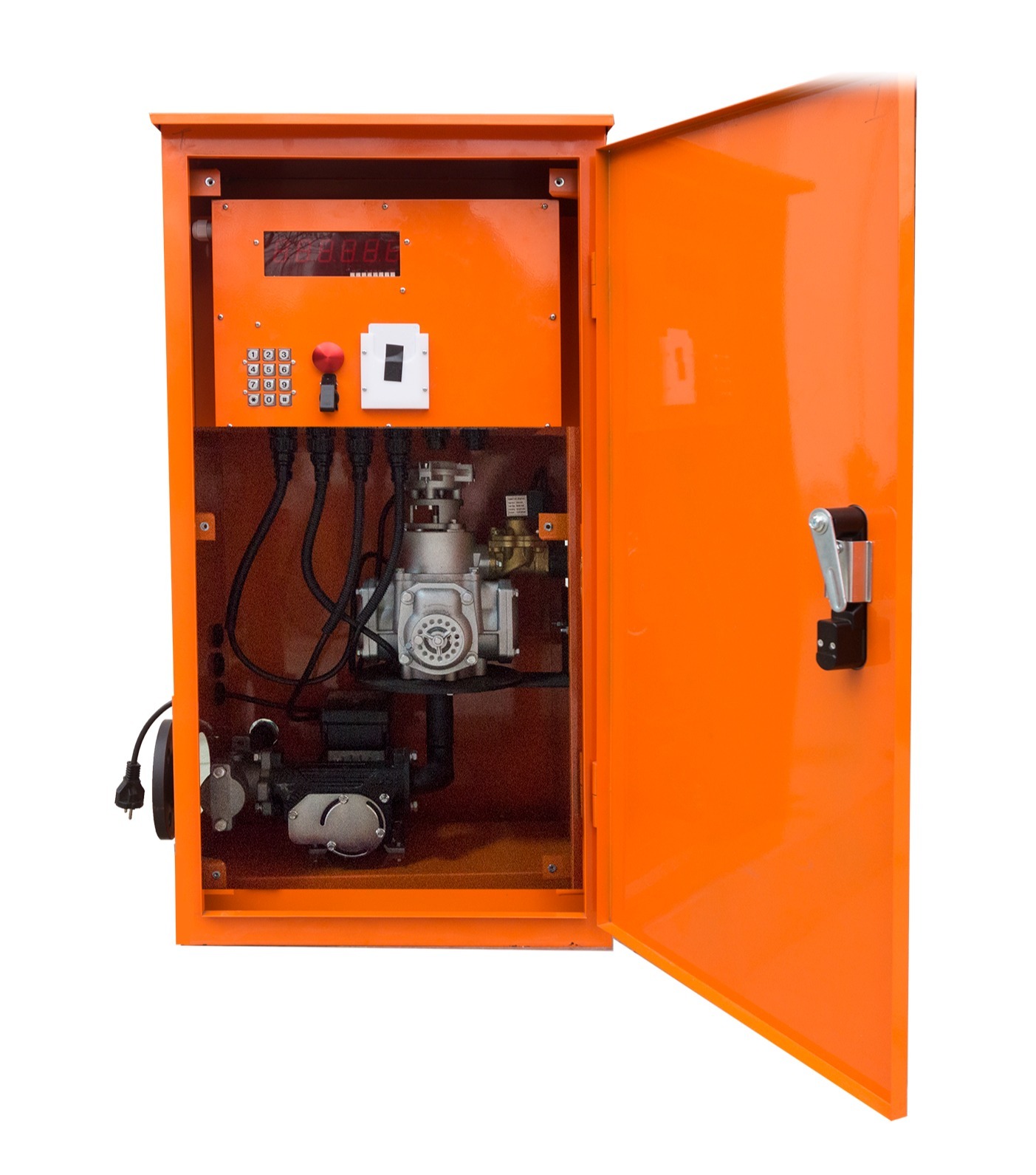

Equipment:
- VT gauge -60
-pump PA1 70 (220V, 70 l/min)
Temperature mode : -40°C +50°C degrees
0.25% relative error
Weight - 40 kg.
Sleeve and gun are not included.
Functionality:
Refill kit for diesel fuel as in popular High-precision calibration station EST-03 professional and Mobile fuel dispenser EFL, but in a safe type and with a more powerful fuel pump:
- Pre-installed Autonomous filling system
- Presence of current and total counters.
- Quality functions of mechanical and electronic calibration of the counter.
- Bipp Fuel dispensing start and stop manager.
- RS485 input for connecting up to 4 fuel level sensors.
- Ability to control dispensing with RFID plastic fuel cards (online/offline).</li >
- The ability to remotely program maps, the absolute and daily fuel limit.
- Web interface for reporting.
- The ability to upload data to 1C accounting
