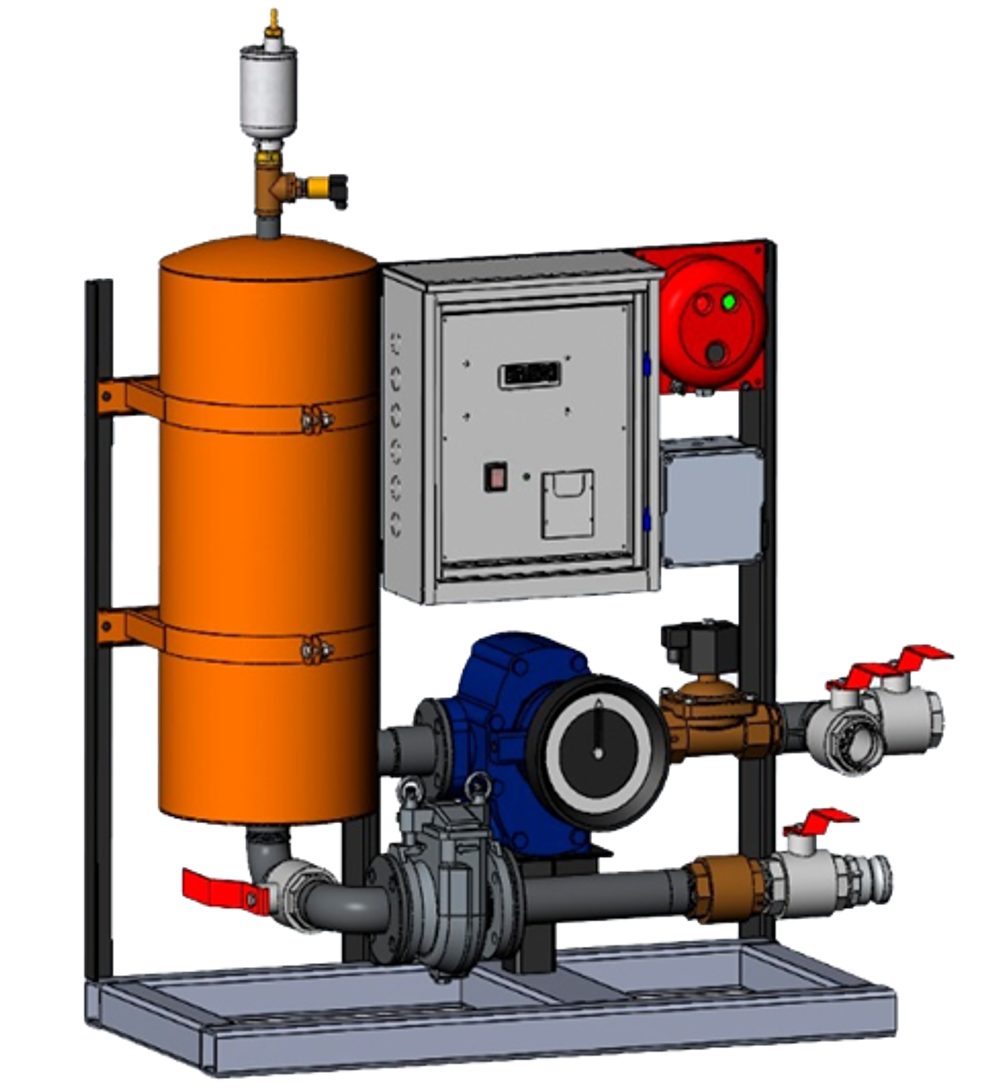

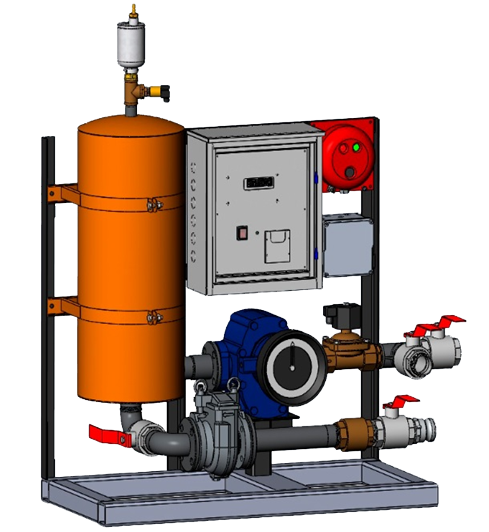

Production company EXOTRON TECHNOLOGY LLC offers the delivery of a filling unit for high-speed (for draining and transferring) diesel fuel based on a fuel transfer unit with a connection diameter of DN50 and an EFL 4.02 module of our own production.
High-speed pumping unit fuel with defoamer Dn50 + EFL 4.02 (20 cubic meters / hour) allows for the acceptance of fuel from an oil tanker to the capacity of gas stations, as well as pumping fuel & nbsp; from an oil tanker to another tanker. In order to eliminate air and foam, the unit is equipped with a vortex gas separator, as well as a pressure sensor to organize the blocking of shipment at the limit value of air in the systems. Thus, the system completely eliminates the human factor and the possibility of counting air when receiving fuel or transferring fuel between two tankers.
This unit is not equipped with an electric pump, and fuel transfer is carried out by calculation of pump pressure by the tanker that drains.
Fuel transfer options:
- Receiving fuel from an oil tanker to a tank.
- Transferring fuel from a tanker to a tanker.
FeaturesSpeed reverse unit for fuel transfer with antifoam:
- Presence of a vortex gas separator, which improves the accuracy of fuel metering by eliminating air and foam counting by the meter.
Ability to receive fuel from a tanker via the connection Camlock 1 at a gas station.- It is possible to transfer fuel between tankers by connecting the first tanker to Camlock 1 and the second tanker to Camlock 2.
- The unit is equipped with a tanker grounding mechanism.
- Module presence EFL 4.02, which allows you to account for incoming fuel with map identification and data transfer to the monitoring system.
- Presence of a pressure sensor to organize automatic blocking of fuel delivery when the amount of air in the system is limited .

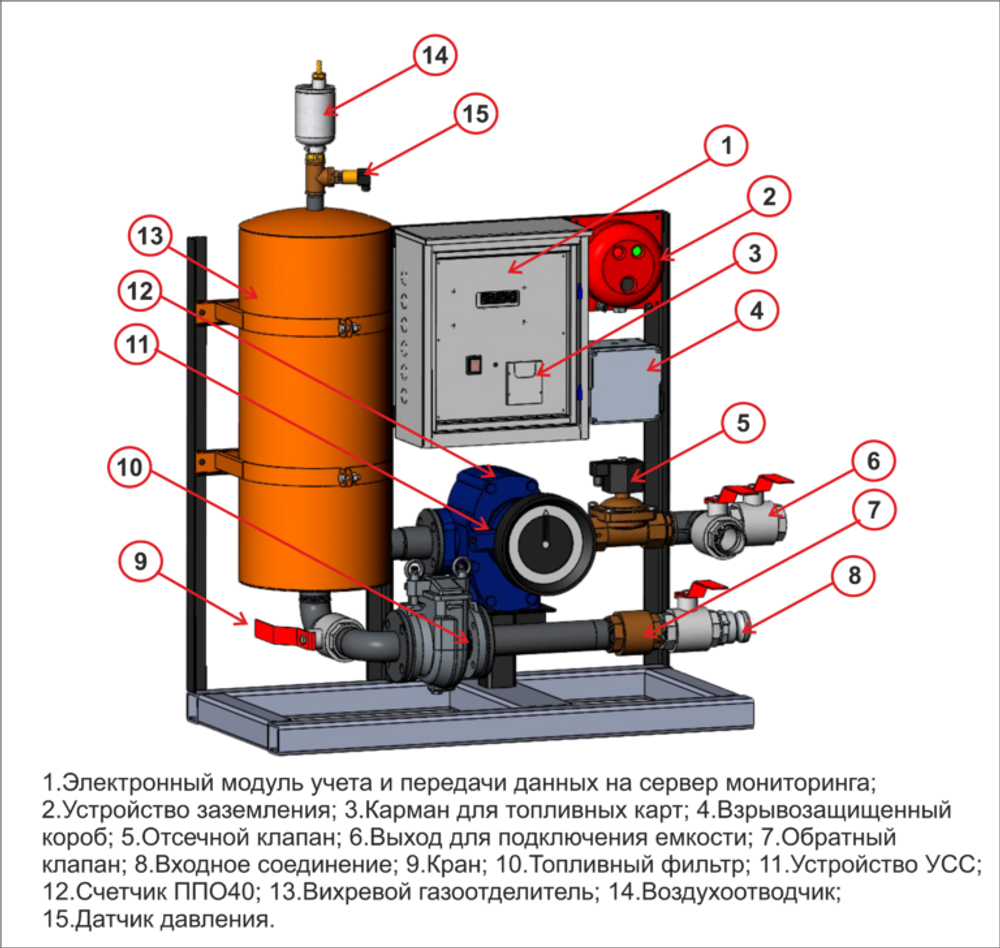

Basic Speed Fuel Receiving Assembly Dn50+EFL 4.02 includes in yourself:
- Coarse filter DN 50
- Vortex gas separator Ex-air Separator, DN50
- Fuel meter PPO-40
- Solenoid valve Viton 2V 21-50 (220) or KEG40.
- USS-B-25
- Fuel module EFL 4.02
- Grounding and control device UZA-2MK 04< /li>
- Pressure transducer
- Camlocks
- Ball valves
- Frame
Specifications:
| Parameter | Unit | Value |
| Installation dimensions | cm | 125x150x74 |
| Fuel module dimensions | cm | 41x35x17 |
| Weight | kg | 410 |
| Food | volts | 220 |
| Power | Watts | 100 |
| Precision class | % | 0.25% |
| Temperature setting | (⁰ C) | -40 to +60 |
| Fill rate | m³/h | up to 20 |
| Develops pressure | m | up to 12 |
| Inlet and outlet connection diameter | mm | 50 |
At the request of the customer, additional equipment is possible:
- Making an additional 75 Camlock connection.
- Sheathing the assembly with material. Roof, walls and gate.
- Equipment with wheels to move the unit.
- Using a two-circuit valve for precise filling of KEG40.
- Annual hosting to the cloud Web service Exzotron Bot.
