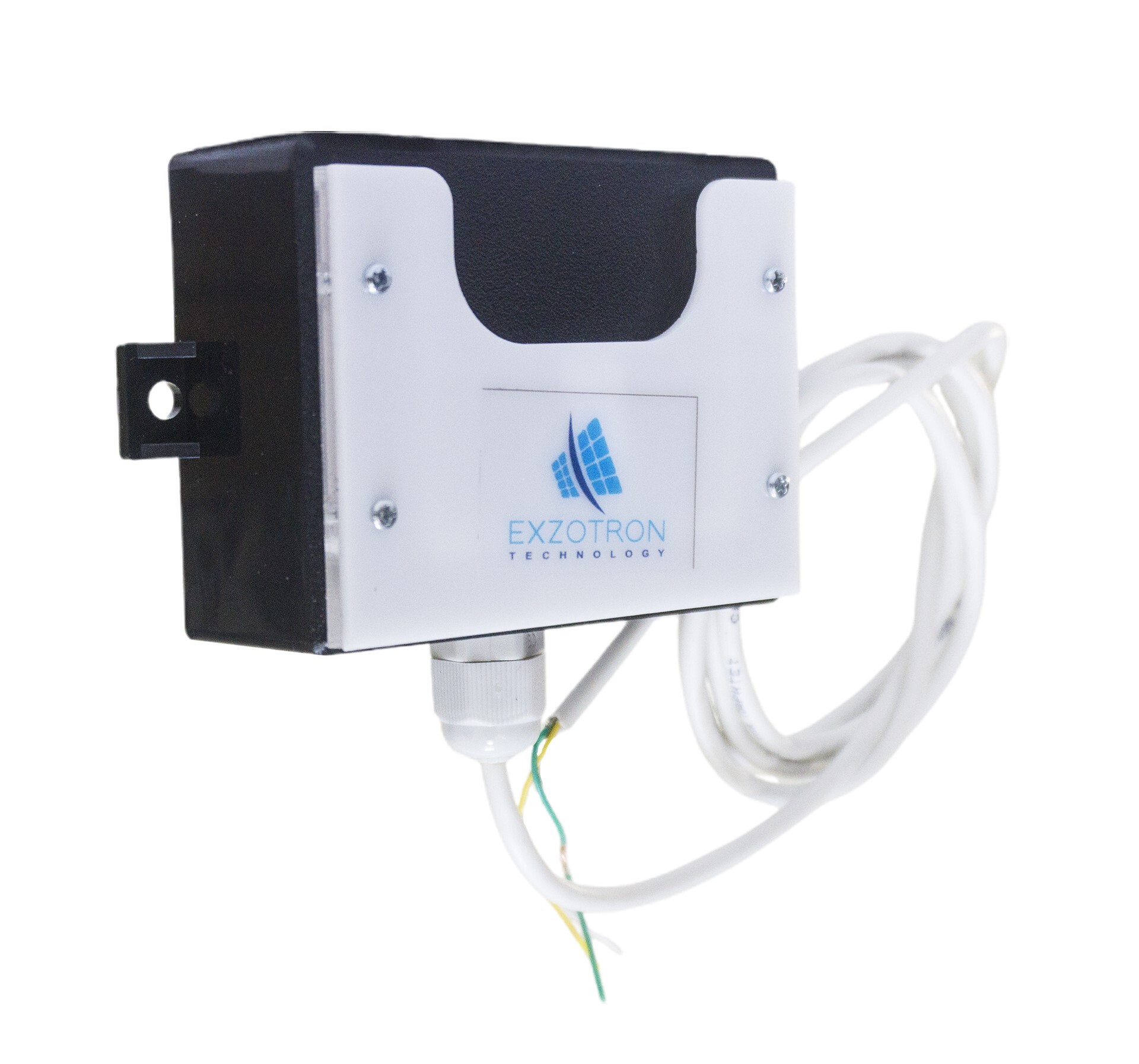

Simple and reliable EM-Marine standard fuel card reader. Transmits the card's RFID ID over the 1-wire channel in the IButton protocol. It differs, like all RFID card readers from Exotron, in the presence of a pocket for a card. This makes identification of the driver's working hours more correct — when the driver starts working, the RFID identification card is placed in the pocket and stays there for the entire period of work.
The case is made of durable plastic and is equipped with a pocket for fixing the card in contact with the reader. Which is very convenient for driver identification and other cases that require long-term contact of the magnetic card with the ERF-02 reader.
EM-Marine standard cards with an operating frequency of 125kHz are used. The code of the read card is converted to the DallasTouchMemory code and transmitted via the IButton protocol.
Specifications:
- Operating frequency: 125 kHz
- Identifier reading: EM-Marine
- Reading range: 3-6cm
- Power supply: 10-30V DC
- Current consumption: 50mA (max)
- Output interface: Wiegand 26, Dallas Touch Memory (DS1990A emulation) < li style="text-align: justify;">Operating temperature: -40C to +50C
- Dimensions (mm): 31x51x14
